Industrial Pipe Racks & Equipment Platforms
Del Mar Steel engineers and fabricates industrial and modular pipe racks, generator platforms, and equipment support structures around actual pipe schedules, equipment loads, access requirements, and field installation conditions.
Support Structures Designed Around Real Project Loads
Del Mar Steel fabricates support structures around actual pipe schedules, cable tray requirements, equipment weight, vibration, maintenance access, wind, seismic, and field-installation conditions.

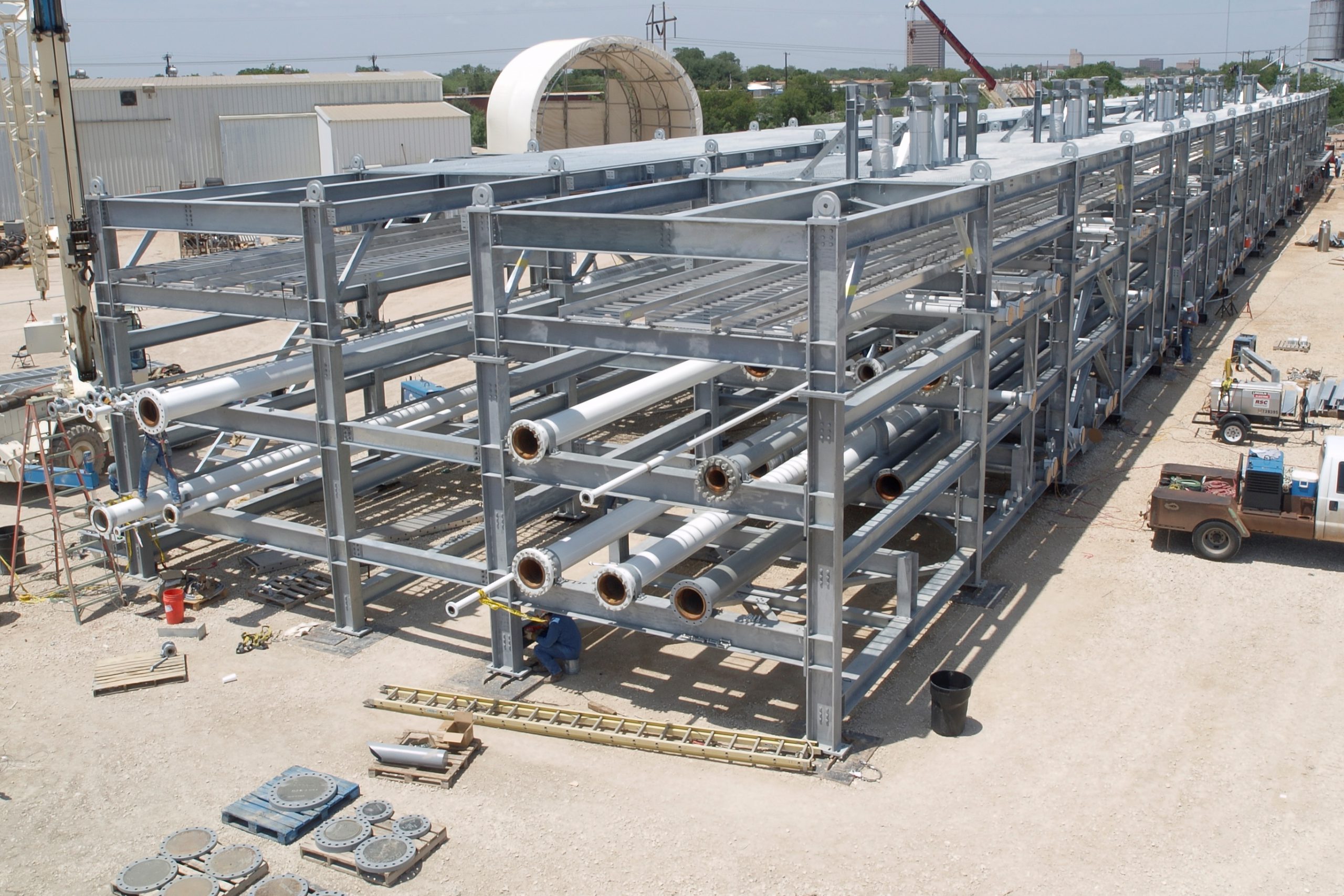

Industrial & Modular Pipe Rack Systems

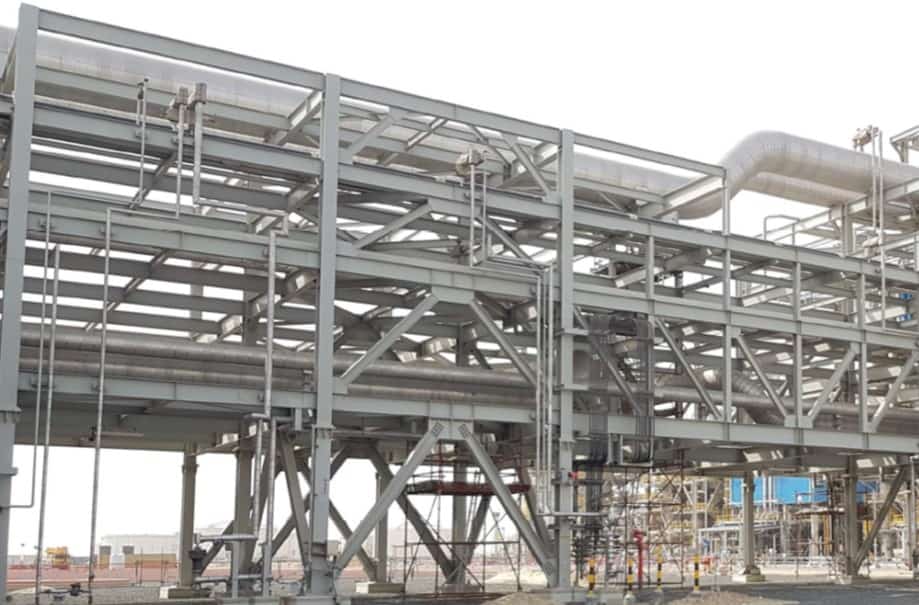

Industrial pipe racks carry process piping, utility lines, cable tray, and related infrastructure across a facility. The structural system is developed around the actual loads and routing requirements instead of an oversized generic frame.
- Structural sizing based on actual pipe, tray, and utility loads
- Modular sections designed for shop fabrication and efficient field assembly
- Coating or galvanizing options selected for project exposure conditions
Generator & Mechanical Equipment Platforms
Equipment platforms provide structural support, maintenance access, and elevation for generators, mechanical systems, and other large equipment packages. Platform framing is developed around equipment footprint, operating loads, vibration, and service requirements.
- Structural framing sized to equipment footprint and load
- Grating, handrail, stairs, and maintenance-access packages available
- Support structures coordinated for vibration, wind, and seismic requirements
Move Fit-Up and Structural Coordination Into the Shop
Pipe rack sections and equipment platforms can be fabricated, fit-checked, and organized around field erection requirements before they leave the shop. That gives installers a more predictable structural package and reduces field modification, rework, and assembly time.
Request a Quote
Pipe Racks & Equipment Support Structures
Del Mar Steel fabricates structural support systems ranging from modular pipe racks to generator and equipment platforms, coordinated around the loads and conditions of the project.
One Fabrication Partner for the Support Structure
Sized to Actual Loads
Pipe racks and platforms are developed around real pipe, cable tray, equipment, maintenance, wind, and structural loading requirements.
Shop Fit-Checked
Structural assemblies can be fit-checked and organized in the shop so field crews spend less time modifying or resolving steel during erection.
Single-Source Scope
Structural steel, grating, stairs, handrail, equipment supports, and coating can be coordinated through one fabrication partner.
How a Pipe Rack or Platform Project Moves Through Del Mar Steel
RFQ & Load Review
Send available plot plans, pipe schedules, equipment loading, access requirements, or preliminary drawings. Our team reviews loads, geometry, scope, and fabrication requirements.
Engineering & Detailing
Structural framing, connections, support locations, equipment interfaces, access steel, and fabrication details are coordinated with the project engineer and construction team.
Fabrication & Quality Control
Structural members are fabricated to approved drawings with dimensional checks, welding procedures, coating or galvanizing requirements, and project-specific inspection criteria.
Delivery & Field Support
Rack and platform sections are prepared around shipping and erection requirements so steel arrives organized for efficient installation and field tie-in.
Bring Del Mar Steel Into the Support Structure Scope Early
Send us a plot plan, pipe schedule, equipment loading data, or preliminary drawings. Our team can review the support structure and discuss engineering, fabrication, sequencing, delivery, and field installation requirements.
